Basic parameters

• Length*Width*Height (mm)

  10,990*2,550*3,640 (air spring）/ 10,990*2,550*3,680 (leaf spring)

• Inner height (mm)

  1,980

• Wheelbase (mm)

  5,550

• Front/rear overhang (mm)

  2,290/3,150

• Tire size

  11R22.5

• Minimum turning diameter (m)

  20

• Maximum seats

  49+1+1

• Fuel tank

  260L

• Maximum luggage compartment volume (m³)

  7

• Maximum manufacturer's total mass (kg)

  15,900

• Front/middle/rear axle (kg)

  4,970/10,930

Powertrain

• Engine model

  YC6L310-50, YC6L310-30

• Transmission

  6-speed manual

• Rated power

  228

• Rated torque

  1,150

• Displacement (L)

  8.424

• Emission

  Euro V, Euro III

• Retarder

  ●

Seat

• Driver seat

  ●Full air suspended ○Semi air suspended

• Guide seat

  ●

• Passenger seat

  ● 2-point retracting belts

Interior

• Curtain

  ●

• Integral inner luggage rack

  ●

• Roof hatch

  ●With ventilator

Exterior

• First passenger door

  ●

• Fully enclosed glass

  ●

• Driver window

  ●

• Front windshield

  ● Left and right panels ○ Single panel

• Tempered glass bonded rear windshield

  ●

• Manual tilt-up door for luggage compartment

  ○

• Upward swing door for luggage compartment

  ●

A/C

• Only cooling

  ●

• Natural wind defroster

  ●

Chassis

• Axle

  ●Front and rear disc brakes, front axle 5.5T, rear axle 11.5T

• Air suspension

  ●

• Leaf spring suspension

  ○

• ECAS

  ○

• Steering wheel

  ● Left hand drive

• EPB

  ●

Safety and driving assistance system

• Brake safety system

  ●ABS

• Driver Drowsiness and Attention Warning (DDAW)

  ○

• Tire Pressure Monitoring System (TPMS)

  ○

• Fire extinguishing device

  ●

Audio-visual entertainment and lighting

• Play system

  ● 7-inch integrated central control
  ○ 10.4-inch integrated central control

• Microphone

  ●1 wired microphone

• LED light for steps

  ●

• Headlamp

  ● LED ○ Halogen

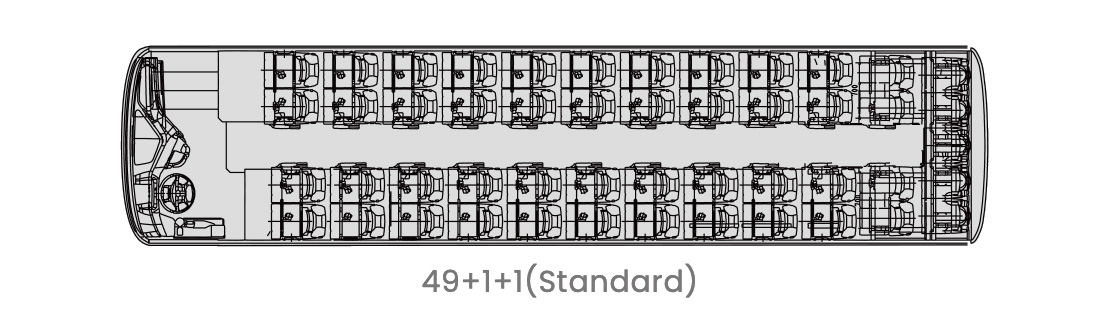

Seat Maps
